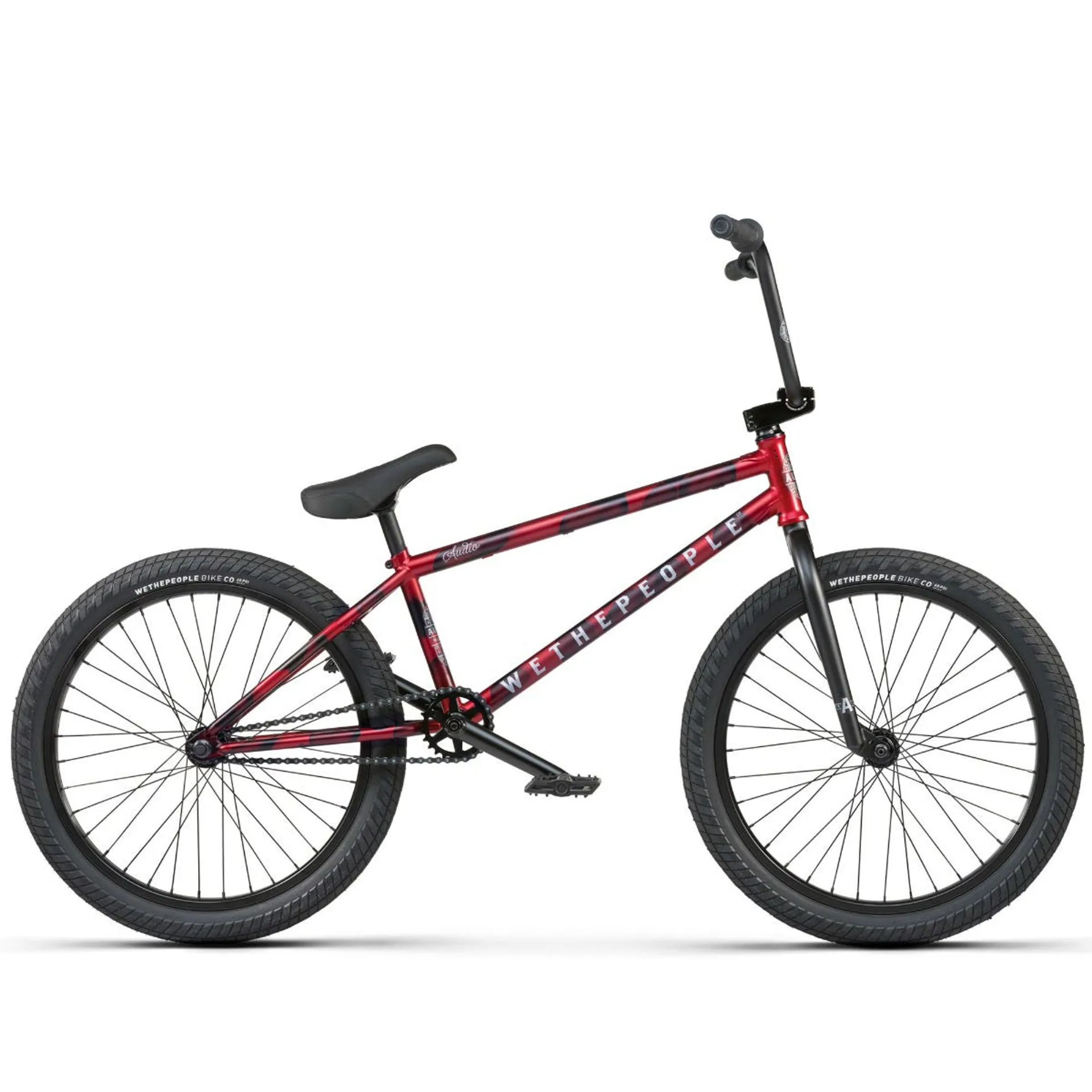

A game changer and leader of the 22â movement.
The audio is built around a larger 22â diameter wheel, providing a more stable ride without sacrificing the classic bmx look and feel. Perfect for the die-hard trail dogs, just or taller riders looking for bike more fitting to their size, without having to ride a bike that simply is not a bmx.
Using the full chromoly aftermarket spec frame, we designed a fork with an even sturdier and bombproof steerer tube/crown area allowing you to push this thing as hard you you can. We spent an incredibly long time dialling in the geometry on the audio, as well as developing our own range of 22â specific parts like the logic rim and overbite tire.
A bike which will surprise you in how well it rides, the audio is leading the pack in the 22â revolution.
Technical specification:
frame: wethepeople "audio" frame, 4130 full sanko, tapered cs & ss, with removable brake pivots & guides
fork: wethepeople "audio" fork, butted cromo tubing, 32mm offset
bars: wethepeople "audio" bar, 4130 full cromo
grips: salt "ex" grips, 154mm, flangless
stem: wethepeople "logic" topload stem, cnc alloy, 50mm reach
headset: salt "pro" int. Headset, sealed bearing
gyro: holes for removable gyro tabs
lever: salt "moto" brake lever, alloy
brakes: eclat âtalonâ alloy u-brake rear
cranks: saltplus "pro48" tubular 3pc crank, cromo, 175mm, 48 spline
bb: salt "mid" bb, 19mm, press fit, sealed bearing
pedals: ãclat "slash" pedals, nylon/fiberglass
chain: wethepeople "supply" chain, z510hx type
sprocket: wethepeople "logic" sprocket, cnc, 6061-t6 alloy, 25t
driver: 1pc cassette driver, 9t, sealed bearing
front: hub salt "ex" hub, fully sealed, 3/8"s male axle, 36h
rear: hub salt "ex" cassette hub, fully sealed, 9t, hollow 14mm axle, 36h
hub: guards -
front: rim wethepeople "logic" rim, double wall, sleeved, 36h
rear: rim wethepeople "logic" rim, double wall, sleeved, 36h
seat: ãclat "bios" pivotal seat, mid padded
seat: post salt "am" pivotal seat post, 150mm, alloy
seat: clamp integrated seat clamp
tyres: wethepeople "overbite" 22" tyres, 2.3", front & rear
pegs: -
weight: 12.03kg / 26.53lbs
sizes and geometry:
top tube length 21.9"
chain stay length 14.2"
head tube angle 74.5â
seat tube angle 71â
bottom bracket height 12.4"
stand over height 9.15"
bar rise 9"
bar width 29.4"
bar back sweep 11â
bar upsweep 2.5â
